JB Series

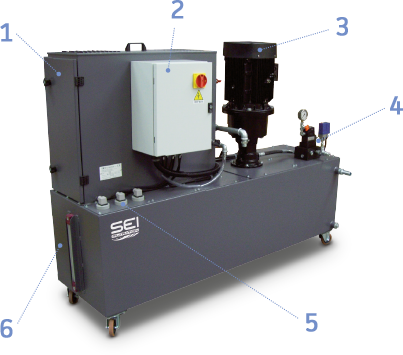

- Filtro de bolsa por gravedad
- Cuadro eléctrico con interfaz al PLC de la máquina-herramienta.
- Bomba de alta presión a la linea del mandrin.
- Grupo de la válvula de seguridad, presostato y manómetro.
- Boya flotante para gestionar los niveles del depósito.
- Depósito con ruedas de recogida de líquido refrigerante limpio.
MODEL | JB 20/15-M JB 25/20-M |
JB 30/50-V JB 30/70-V |
JB 40/50-V JB 40/70-V |
JB 25/20-V-2T JB 30/30-V-2T |
Volume | FIXED | FIXED – VARIABLE | FIXED – VARIABLE | FIXED |
Performance | 20 Lpm -15 bar 25 Lpm -20 bar |
30 Lpm -50 bar 30 Lpm -70 bar |
40 Lpm -50 bar 40 Lpm -70 bar |
2 x 25 Lpm -20 bar 2 x 30 Lpm -30 bar |
Tank capacity | 180 l | 350 l | 350 l | 500 l |
Pump type (kW) | Multistage (1.5 kW) (3 kW) |
Screw (4 kW) (5.5 kW) | Screw (5.5 kW) (7.5 kW) | 2 screws (4 kW) (5.5 kW) |
